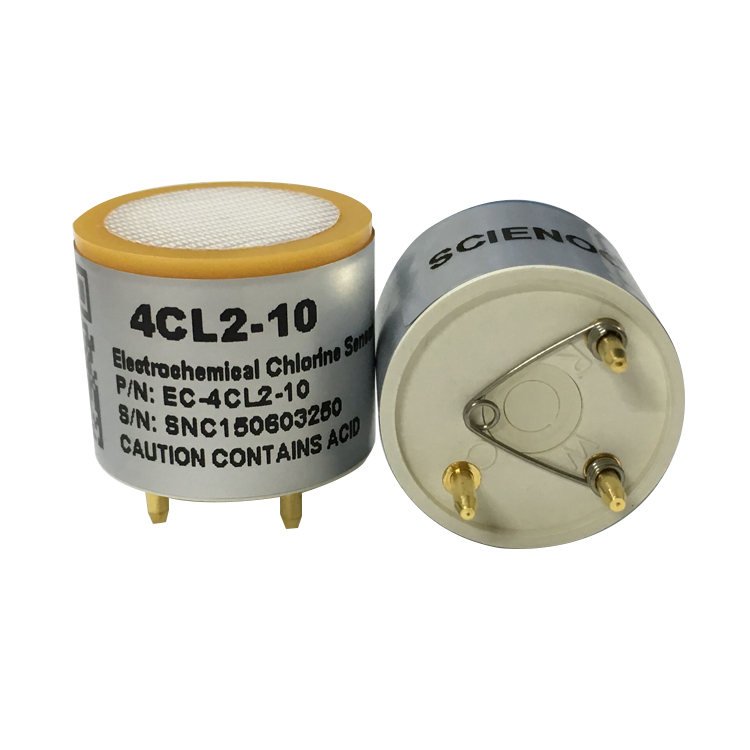

Electrochemical Chlorine Sensor EC-4CL2-10
EC-4CL2-10 is chlorine sensor which detects chlorine(CL2) in level from 0~10ppm.Since the output current is fairly large, it can detect the low concentration of Cl2 with great accuracy.
Electrochemical Chlorine Sensor EC-4Cl2-10 has very excellent repeatability, long term stability, selectivity and resistivity, it is useful for the concentration control of Cl2 at water sterilization.
The Chlorine(Cl2) Electrochemical Sensor EC-4Cl2-10 can be retrofitted easily to existing product designs.

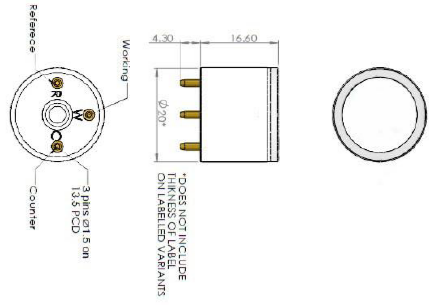

Dimensions in millimeters(±0.1mm)
Target Gas and Concentration
| Gas | P/N | Operating principle | Detection Range | Maximum Overload |
Chlorine (Cl2) | EC-4Cl2-10 | 3-electrode electrochemical | 0~10ppm | 50ppm |
Gas Sensitivity Characteristics
| Gas | Concentration & Output Current |
| Chlorine(Cl2) | 0.75 ± 0.2μA /ppm |
Ratings & environment
| Response Time | (T90)≤30S (Typical16S) |
| Repeatability | <±2% signal |
| Linearity | Linear |
| Long term output Drift | <2% signal/month |
| Resolution | 0.1 ppm |
| Recommended Load | 5~30 Ω |
| Bias Voltage | 0 mV |
| Operating Temp. Range | -20℃~ 50℃ |
| Operating Humidity | 15% RH ~ 90% RH(non-condensing) |
| Operating Pressure Range | 800 ~ 1200 mbar |
Storage & Shelf Life
| Recommended Storage Temperature | 0℃~ +20℃ in sealed package |
| Expected Operating Life | 24 months in air |
| Storage Life | 6 months in original package |
| Standard Warranty | 18 months from the date of delivery |
Cross-Sensitivity Data
| Gas | Concentration (ppm) | Output signal (ppm Cl2 equivalent) |
| Hydrogen | 4000 | 0 |
| Hydrogen Sulfide | 15 | -3 |
| Sulfur Dioxide | 10 | 0 |
| Nitric oxide | 50 | 0 |
| Nitriogen Dioxide | 5 | 6 |
| Ammonia | 100 | 0 |
| Carbon Dioxide | 10000 | 0 |
| Carbon Monoxide | 200 | 0 |

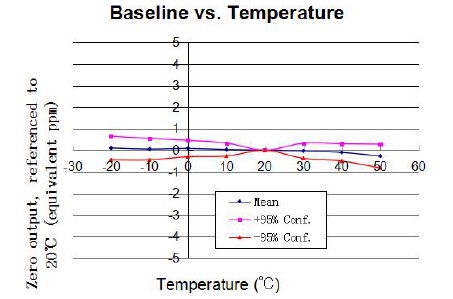

Temperature Data

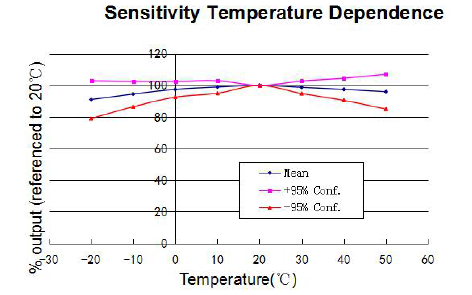

Sensitivity Temperature Dependence
