Ethanol Sensor

CAS NO. 64-17-5

Product Code: EC-4C2H5OH

Ethanol Sensor

This is Electrochemical sensor for Ethanol(Electrochemical Ethanol sensor).

Normal detection range: 0~1ppm,0~3ppm,0~10ppm,0~20ppm,0~100ppm.

Special detection range can be customized.

The Ethanol sensor Modules are available too.



Size: ready stock for all 4 series. 7 series are produced according to orders.



SCIENOC's Ethanol sensor is very stable in normal circumstance for more than 6 months, and can detect Ethanol with excellent accuracy and fast response speed without reduction of sensitivity.standard warranty is 18 months from dispatch time.extended warranty sensors can be customized.


SCIENOC's Electrochemical Ethanol sensor can be retrofitted easily to existing product designs.

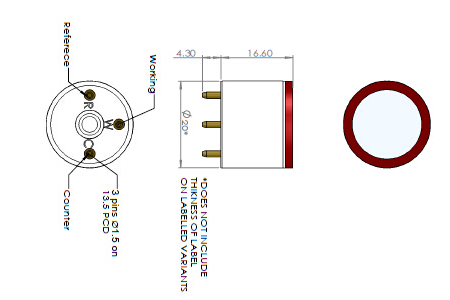

Dimensions in millimeters(±0.1mm)



Target Gas and Concentration

Gas

Operating Principle

P/N

Detection Range






Ethanol

(C2H5OH)





3-electrode

electrochemical

EC-4C2H5OH-1000

0~1000 ppm

10 ppm

EC-4C2H5OH-2000

0~2000 ppm

10 ppm

EC-4C2H5OH-5000

0~5000 ppm

EC-4C2H5OH-10000

0~10000 ppm

EC-4C2H5OH-20000

0~20000 ppm



Gas Sensitivity Characteristics

P/N

Sensitivity

Response Time (T90)

Resolution

EC-4C2H5OH-1000

15 ± 5 nA/ppm

60s

5 ppm

EC-4C2H5OH-2000

8 ± 3 nA/ppm

60s

10 ppm

EC-4C2H5OH-5000

4 ± 2 nA /ppm

50s

50 ppm

EC-4C2H5OH-10000

1.5 ± 0.5 nA/ppm

60s

<100 ppm

EC-4C2H5OH-20000

1 ± 0.5 nA/ppm

60s

100 ppm



Ratings & environment

Repeatability

<±2% signal

Linearity

Linear

Long term output Drift

<2% signal/month

Recommended Load

5~35 Ω

Bias Voltage

300 mV

Operating Temp. Range

-30°C ~ 50°C

Operating Humidity

15% RH ~ 90% RH(non-condensing)

Operating Pressure Range

800 ~ 1200 mbar



Storage & Shelf Life

Recommended Storage Temperature

0℃~ +20℃ in sealed package

Expected Operating Life

24 months in air

Storage Life

6 months in original package

Standard Warranty

18 months from the date of delivery



Cross-Sensitivity Data

Available upon request.


Temperature Data

Available upon request



Sensitivity Temperature Dependence

Available upon request
