This is Electrochemical sensor for Nitrogen Dioxide (Electrochemical Nitrogen Dioxide sensor,NO2 sensor).
Normal detection range:0~0.175ppm,0~1ppm,0~10ppm,0~20ppm,0~200ppm,
0~250ppm,0~300ppm,0~500ppm,0~5000ppm,0~10000ppm.
Special detection range can be customized.
The Nitrogen Dioxide sensor Modules are available too.
Size: ready stock for all 4 series. 7 series are produced according to orders.
SCIENOC's Nitrogen Dioxide sensor is very stable in normal circumstance for more than 6 months, and can detect Nitrogen Dioxide with excellent accuracy and fast response speed without reduction of sensitivity.standard warranty is 18 months from dispatch time.extended warranty sensors can be customized.
SCIENOC's Electrochemical NO2 sensor can be retrofitted easily to existing product designs.

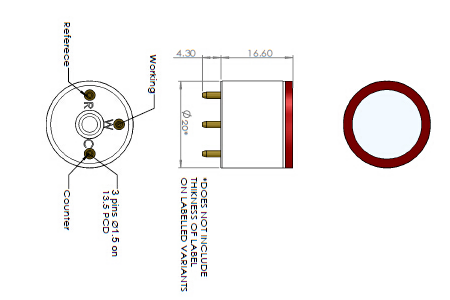

Dimensions in millimeters(±0.1mm)
Target Gas and Concentration
Gas | Operating Principle | P/N | Detection Range |
Nitrogen Dioxide (NO2) |
3-electrode electrochemical | EC-4NO2-0.175 | 0~0.175 ppm |
EC-4NO2-1 | 0~1 ppm | ||
EC-4NO2-10 | 0~10 ppm | ||
EC-4NO2-200 | 0~200 ppm | ||
EC-4NO2-250 | 0~250 ppm | ||
EC-4NO2-300 | 0~300 ppm | ||
EC-4NO2-500 | 0~500 ppm | ||
EC-4NO2-2000 | 0~2000 ppm | ||
EC-4NO2-5000 | 0~5000 ppm | ||
EC-4NO2-10000 | 0~10000 ppm |
Gas Sensitivity Characteristics
P/N | Sensitivity | Response Time (T90) | Resolution |
EC-4NO2-0.175 | 60 ± 30 nA /ppb (negative signal)
| 20s | 1 ppb |
EC-4NO2-1 | 1500 ± 500 nA /ppm (negative signal)
| 30s | <20 ppb |
EC-4NO2-10 | 1000 ± 500 nA /ppm (negative signal) | 35s | 0.01 ppm |
EC-4NO2-200 | 60 ± 20 nA /ppm (negative signal) | 35s | 1 ppm |
EC-4NO2-250 | 50 ± 20 nA /ppm (negative signal) | 35s | 1 ppm |
EC-4NO2-300 | 45 ± 14n A /ppm (negative signal) | 40s | 1 ppm |
EC-4NO2-500 | 60 ± 30 nA /ppm (negative signal) | 45s | 5 ppm |
EC-4NO2-2000 | 0.02 ± 0.01 μA /ppm (negative signal) | 60s | 5 ppm |
EC-4NO2-5000 | 6 ± 3 nA /ppm (negative signal) | 60s | 50 ppm |
EC-4NO2-10000 | 3.0 ± 1.5 nA /ppm (negative signal) | 60s | <100 ppm |
Ratings & environment
Repeatability | <±2% signal |
Linearity | Linear |
Long term output Drift | <2% signal/month |
Recommended Load | 5~ 30Ω |
Bias Voltage | 0 mV |
Operating Temp. Range | -20°C ~ 50°C |
Operating Humidity | 15% RH ~ 90% RH(non-condensing) |
Operating Pressure Range | 800 ~ 1200 mbar |
Storage & Shelf Life
Recommended Storage Temperature | 0℃~ +20℃ in sealed package |
Expected Operating Life | 24 months in air |
Storage Life | 6 months in original package |
Standard Warranty | 18 months from the date of delivery |
Cross-Sensitivity Data
Available upon request.
Temperature Data
Available upon request
Sensitivity Temperature Dependence
Available upon request
