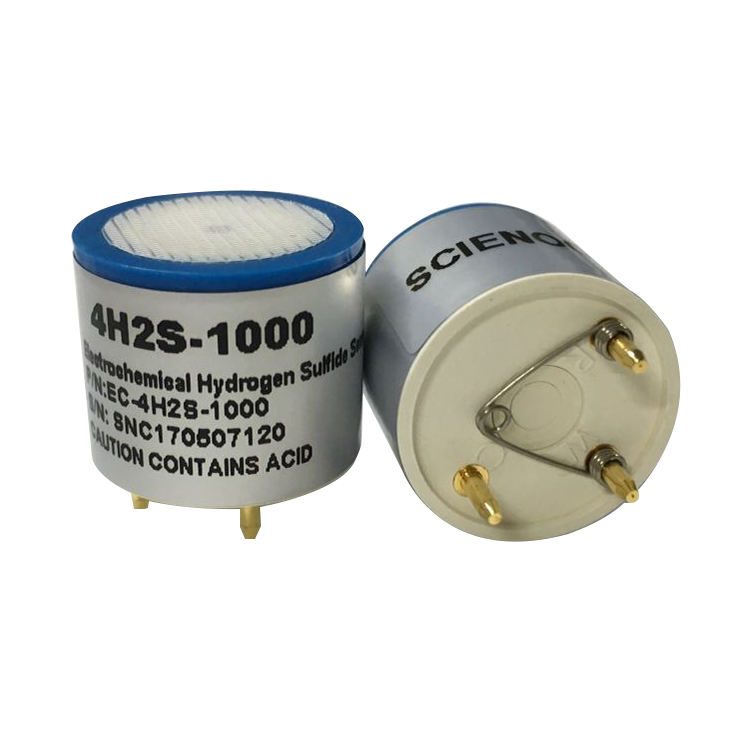

Hydrogen Sulfide Sensor EC-4H2S-1000

CAS NO. /

Product Code: EC-4H2S-1000

Hydrogen Sulfide Sensor EC-4H2S-1000

Hydrogen Sulfide Sensor EC-4H2S-1000

EC-4H2S-1000 is a Electrochemical Hydrogen Sulfide Sensor which detects H2S in level from 0-1000 ppm.This product is for fixed and portal applications for detection of H2S in industrial,environmental and life safety protection fileds.

Hydrogen Sulfide(H2S) Electrochemical Sensor EC-4H2S-1000 can be retrofitted easily to existing product designs.


Dimensions in millimeters(±0.1mm)



Target Gas and Concentration

GasP/N

Operating

 principle

Detection

 Range

Maximum

Overload

Hydrogen Sulfide

(H2S

EC-4H2S-10003-electrode electrochemical0~1000ppm2000ppm


Gas Sensitivity Characteristics

GasConcentration & Output Current
Hydrogen Sulfide (H2S) 0.09 ± 0.04μA/ppm


Ratings & environment

Response Time(T90)≤30s
Repeatability<±2% signal
LinearityLinear
Long term output Drift<2% signal/month
Resolution1 ppm
Recommended Load5~10 Ω
Bias Voltage0 mV
Operating Temp. Range-20℃~ 50℃
Operating Humidity15% RH ~ 90% RH(non-condensing)
Operating Pressure Range800 ~ 1200 mbar


Storage & Shelf Life

Recommended Storage Temperature0℃~ +20℃ in sealed package
Expected Operating Life24 months in air
Storage Life6 months in original package
Standard Warranty18 months from the date of delivery


Cross Sensitivity Data

Gas

Concentration

(ppm)

Output Signal

(ppm H2S equivalent)

Carbon Monoxide2000
Sulfur Dioxide100
Nitric oxide30<3
Nitrogen Dioxide100
Hydrogen10000

0

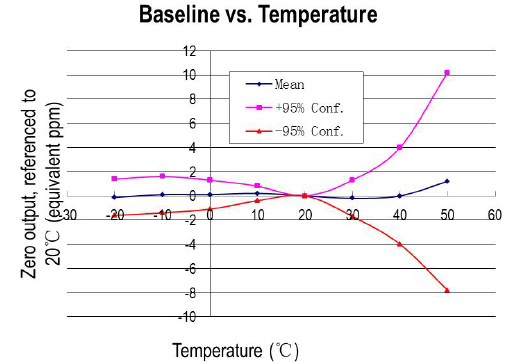

Temperature Data

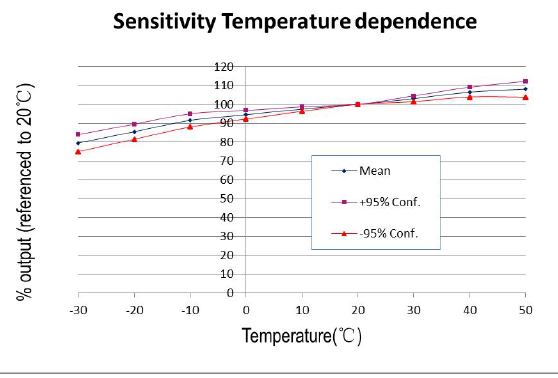

Sensitivity Temperature Dependence
