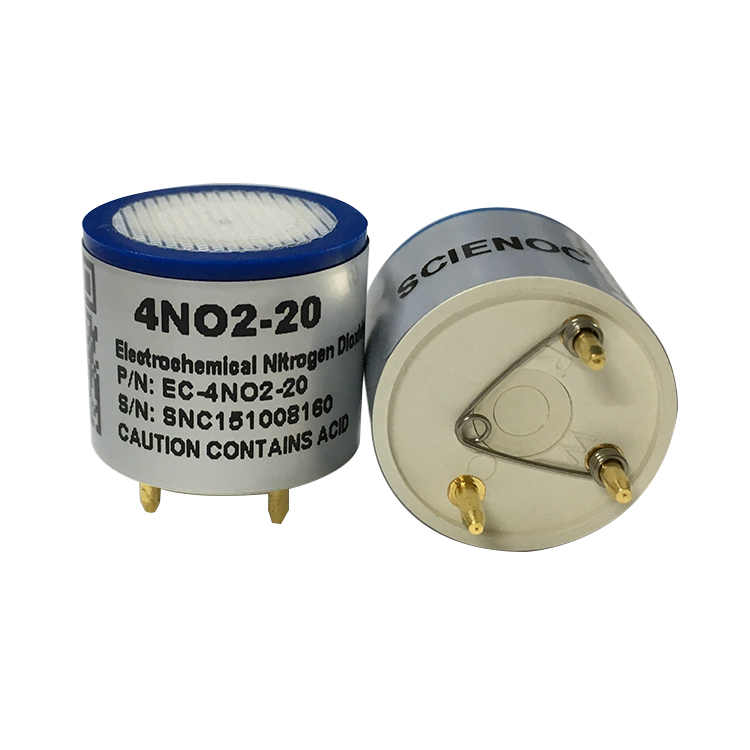

Electrochemical Nitrogen Dioxide Sensor EC-4NO2-20
EC-4NO2-20 is a NO2 sensor which detects Nitrogen Dioxide in level from 0-20 ppm.
EC-4NO2-20 Nitrogen Dioxide Sensor has very excellent repeatability, long term stability, selectivity and resistivity, it is useful in many applications.
As the output current is fairly large, it can detect the low concentration of NO2 with good accuracy.
Nitrogen Dioxide NO2 Electrochemical Sensor EC-4NO2-20 can be retrofitted easily to existing product designs.

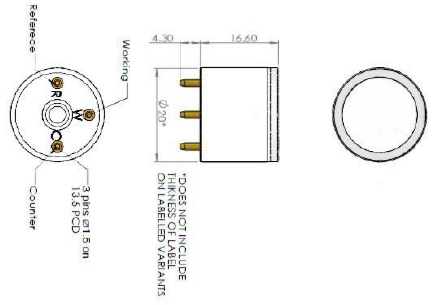

Dimensions in millimeters(±0.1mm)
Target Gas and Concentration
| Gas | P/N | Operating principle | Detection Range | Maximum Overload |
Nitrogen Dioxide NO2 | EC-4NO2-20 | 3-electrode electrochemical | 0~20ppm | 250ppm |
Gas Sensitivity Characteristics
| Gas | Concentration & Output Current |
| Nitrogen Dioxide NO2 | 0.6 ± 0.15μA/ppm |
Ratings & environment
| Response Time | (T90)≤30s (Typical 20s) |
| Repeatability | <±2% signal |
| Linearity | Linear |
| Long term output Drift | <2% signal/month |
| Resolution | 0.1 ppm |
| Recommended Load | 5~30 Ω |
| Bias Voltage | 0 mV |
| Operating Temp. Range | -20℃~ 50℃ |
| Operating Humidity | 15% RH ~ 90% RH(non-condensing) |
| Operating Pressure Range | 800 ~ 1200 mbar |
Storage & Shelf Life
| Recommended Storage Temperature | 0℃~ +20℃ in sealed package |
| Expected Operating Life | 24 months in air |
| Storage Life | 6 months in original package |
| Standard Warranty | 18 months from the date of delivery |
Cross Sensitivity Data
| Gas | Concentration (ppm) | Output Signal (ppm NO2 equivalent) |
| Carbon Monoxide | 200 | 0 |
| Sulfur Dioxide | 5 | -5 |
| Nitric oxide | 30 | 0 |
| Hydrogen Sulfide | 15 | -0.1 |

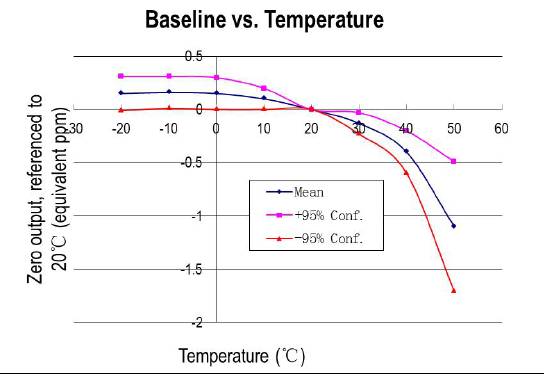

Temperature Data

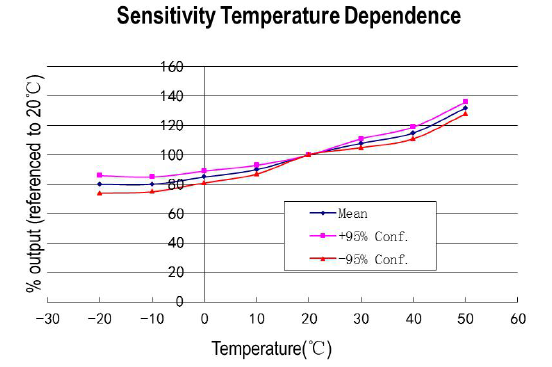

Sensitivity Temperature Dependence
